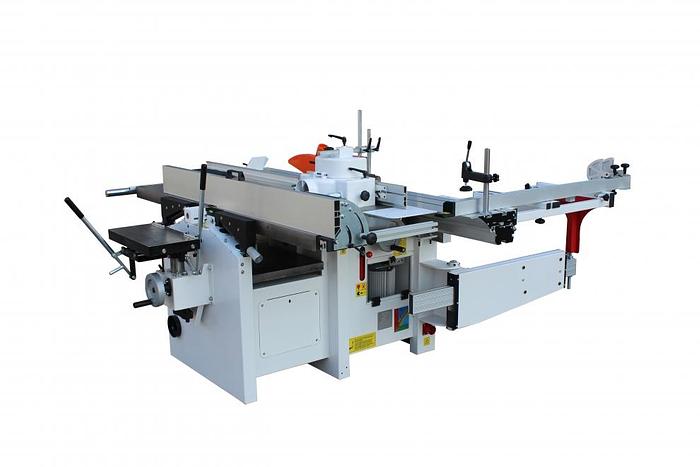

UNIVERSAL COMBINED SICAR MACODUELLE C400 CE

COMBINED SICAR 400 MM 5 WORKINGS SICAR

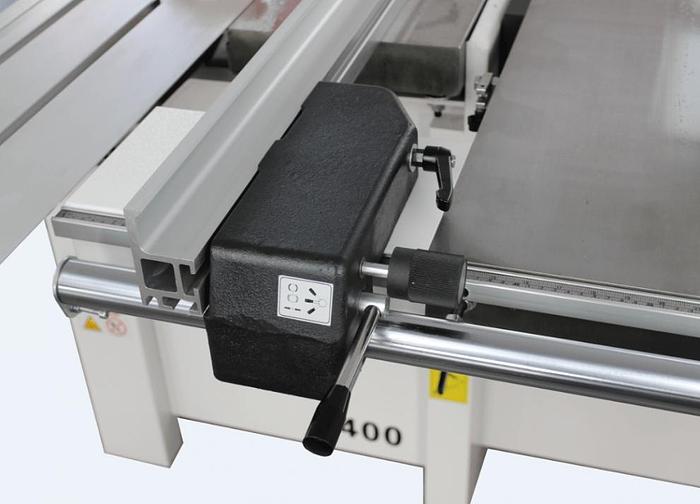

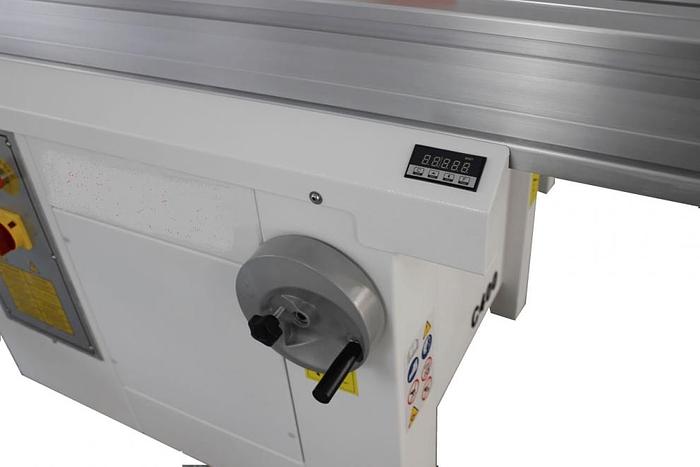

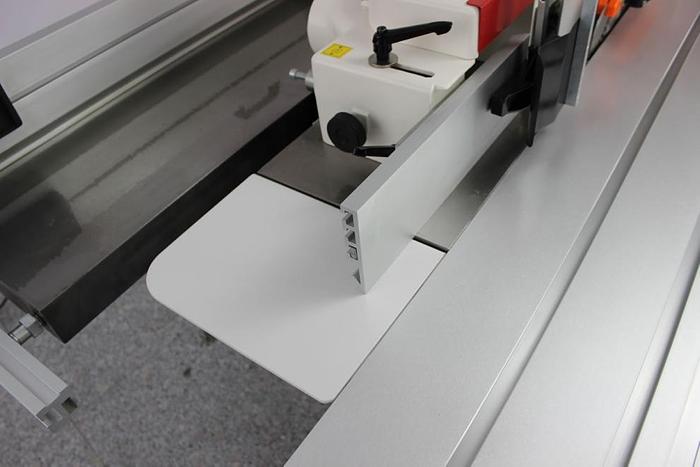

Our C400 5L combined machines have a sturdy frame in folded and welded sheet steel, painted in internal and external powders cooked at 200 degrees, thick normalized cast iron worktops, all the material is certified, fitted with 3 car engines individually protected brakes that can vary the power from 3hp, to 5.5hp according to the request. The carriage is of thick milled and anodized aluminum, may vary in length according to the model or requests, runs on steel balls and steel track, and is adjustable on smoothness. . The spindle moulder can have the desired diameter shaft, has 4 speeds standard, the cap is large in die-cast aluminum, adjustable on both sides in a manner independent, the cuff lines are made of aluminum anodized and milled on the part in contact with the wood and adjustable. The saw unit is made of coarse steel thickness mounted on sectors of material sintered and can be tilted with a handwheel from 90 ° to 45 ° with adjustable stops, the saw blade has a diameter of 300mm with 30mm hole the lifting of the itself is with amortized lever. The engraver is standard and carries a diameter of 90mm with a 22mm hole, is adjustable in both height is vertically. Cutting line parallel in anodized aluminum milled on two sides, with double reading. Independent planing ruler for large pieces dimensions in anodized aluminum, milled, tiltable from 90 ° to 45 ° with reading and stop adjustment. Squaring ruler in anodized aluminum, milled on two sides, extendable up to 3200mm with adjustable reading in stainless steel and numbers engraved in black, easy to adjust double swivel bar. The wooden support surface is made of tubular electrowelded, and is supported by a removable flag with eccentric adjustment. All suction outlets are with a diameter of 120 mm. Corresponds to the latest CE regulations. It is fitted as standard with the 1800mm wagon, 1800mm stroke. You can have it with 2200mm carriage, 2200mm stroke, or with 2600mm carriage, 2600mm stroke. It is the right machine for the demanding hobbyist, the small craftsman and is indispensable for the restorer. The machine is built with stardards superior to its category without affecting the quality / price ratio that it is truly revolutionary.
