FABBRI TERMOMECCANICA F55 SV - F55 CV

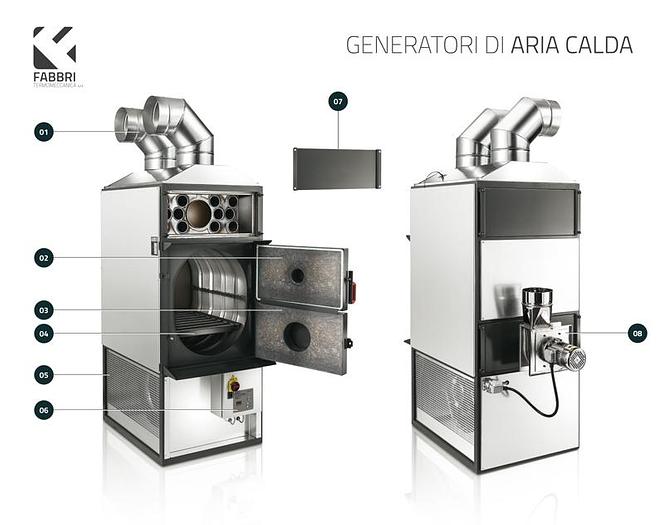

HOT AIR GENERATOR FABBRI F55 SV - F55 CV FABBRI TERMOMECCANICA Horizontal oven in chromium-plated stainless steel with ribs - Heat exchanger with 2 or 3 smoke passes. Manto polished sheet metal interior for cavity and insulation. External coating in galvanized sheet. Profile frame painted. Doors for loading with refractory and removable grids. Panels with refractory for cleaning pipes. Double suction centrifugal fans for hot air delivery operating at low rpm and arranged on special elastic suspensions, driven by one or more electric motors. Smoke extraction fan (excluding models F 28-F 55 sv - F 85 sv). Electrical command and control panel - regulation thermostat. SV / CV MODEL Fuels - Wood - Shavings - Peat - P.C. 3,500 Kcal / Kg. Hearth capacity Kcal / h 69,000 Conventional capacity yield Kcal / h 55,000 Air flow (at 15 °) mc / h 3,500 Fuel consumption P.C. 3,500 Kg / h 20 Electric fan power HP 0.35 Electric power asp. smoke HP 0.35 Motor voltage V 220 monof.
