Universal combined machine CU410ELITE MINIMAX

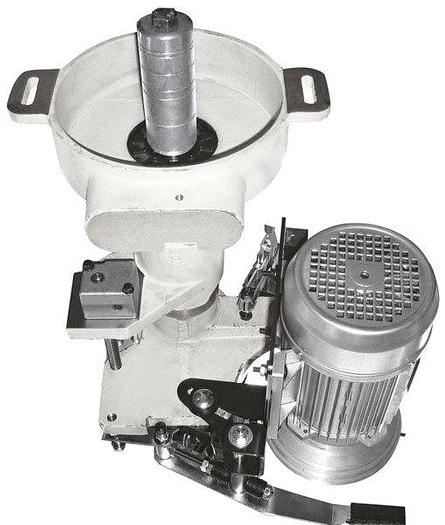

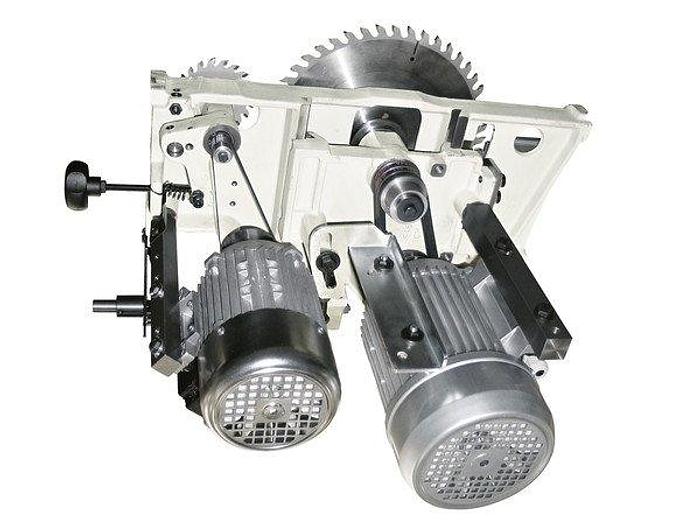

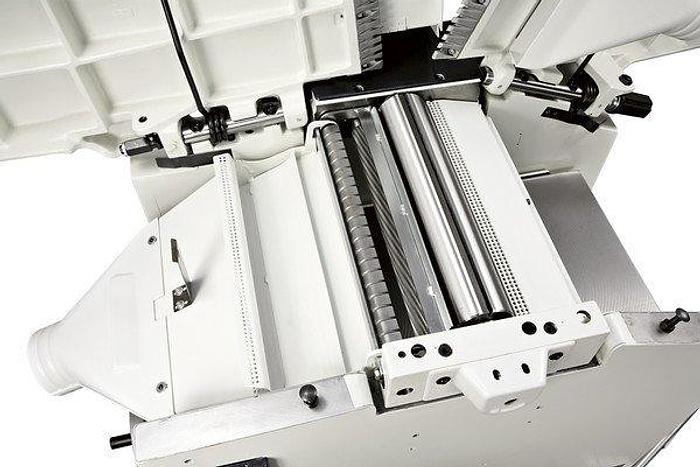

Universal combined machine CU410ELITE MINIMAX Universal combined machine for demanding craftsmen and carpenters looking for a compact machine, but one that is not they give up a finished product of superior quality. Advantages A perfect cutting result is guaranteed by the saw unit consisting of a powerful cast iron structure that gives it solidity and rigidity. Maximum stability in all conditions of use with the spindle moulder unit with large column dimensions entirely in cast iron. Great attention paid to the optimal finish, with solutions such as the output roller the thickness in sandblasted steel or the pressure on the drawing rollers adjustable according to the type of wood to be to work. Surprising speed in the transition from one process to another. Data sheet cu 410 elite Useful working width of the planer 410 mm Total length of the wire planes 2000 mm 2 thickness feed speeds 6/12 m / min Height min. ÷ max. working thickness 3 ÷ 23 mm Spindle moulder table dimensions 430 x 1250 mm Max. Saw blade diameter with mounted engraver 315 mm Max projection saw blade from the plane at 90 ° 100 mm Ability to square 1660 mm 4 spindle moulder speeds 3500/6000/8000/10000 r / min Brochure download
